Pet Crate Rules for Pet Transportation

Your pet's travel crate is essentially their seat on the aircraft. Every crate must be safe, comfortable and well ventilated, and choosing the right crate size for pet travel is the most important step in planning your pet's journey. Please review these airline-approved guidelines carefully before you buy a crate or book a flight.

Crate Guidelines for Pet Travel: Airline-Approved Rules, Sizes & Measuring Guide

Airlines and border inspectors check every travel crate before a pet is accepted. Use this guide to choose an IATA-compliant crate, prepare it correctly for travel day, and measure your dog so the crate fits — a crate that doesn’t meet these rules is the most common reason pets are refused at check-in.

Hard-sided IATA crate

Rigid plastic or wood with a metal door, ventilation on all four sides and metal hardware.

Two bowls on the door

One for food, one for water, fixed to the inside of the door and refillable from outside.

No sedation

Sedatives are not permitted for flying pets. Natural, non-sedative calming aids only.

Video Guide

Watch: How to Assemble a Dog Crate for Airline Travel

Our team builds a BB75 crate step by step — bolts, bowls, funnel, bedding, security bars and zip ties. The same process applies to BB55, PP60 and PP90 crates.

What Can (and Can’t) Go in the Crate

Allowed

  • Absorbent bedding — we can provide it, or include a favorite blanket that smells like home.
  • One clear ziplock bag of kibble attached to the outside of the crate.
  • Medications in their original prescription bottles only.
  • Leash and collar attached to the crate — security staff may still remove them.
  • Export documents only — extra pet records can cause confusion at border inspections.

Not allowed

  • Collars or harnesses on your pet — pets fly without them.
  • Toys, bones or rawhides — rubber, metal or chew items of any kind.
  • Electronics or other loose items in or on the crate.
  • Valuables attached to the crate.
  • Sedatives of any kind.

Feeding on flight day: feed no more than half your pet’s normal meal on the morning of the flight. Calming: if your pet needs help settling, we recommend natural, non-sedative products such as Adaptil Calming Spray, which we can apply inside the crate.

Crate Requirements for Flights from U.S. Airports

IATA-compliant plastic pet travel crate with metal door and side ventilation
  • Ventilation on the sides and rear
  • Metal nuts and bolts in every hardware hole — no plastic wing nuts or clips
  • Nuts fitted on top so they can’t vibrate loose in transit

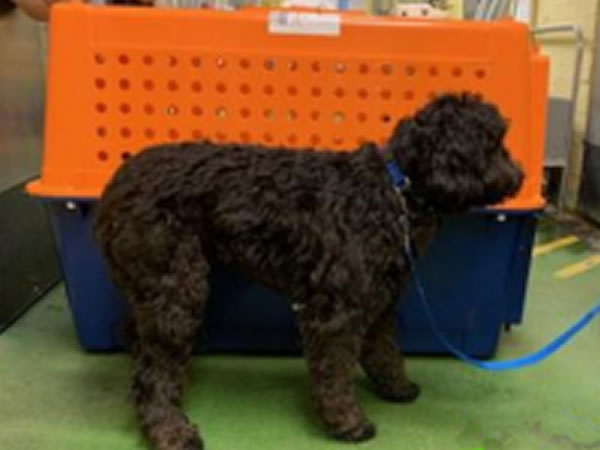

Dog standing in front of its travel crate for size confirmation
  • Photo of your pet standing in front of the crate
  • Your pet’s measurements — see the measuring guide
  • Clearance above, behind and in front of your pet

Download: Crate Guidelines from the USA (PDF)

Travel Crate Size Chart

Common airline crate models and their outside dimensions. Your pet’s measurements decide the size — never choose by weight alone.

Crate ModelDimensions (L × W × H)Notes
Petmate Sky Kennel #10021″ × 16″ × 15″Not allowed for international travel
Petmate Sky Kennel #20028″ × 20.5″ × 21.5″—
Petmate Sky Kennel #30032″ × 22.5″ × 24″—
Petmate Sky Kennel #40036″ × 25″ × 27″—
Petmate Sky Kennel #50040″ × 27″ × 30″Contact Dryfur
PP90 (a.k.a. #600)52″ × 32″ × 32.5″Approved No metal sides — pet-express.com
Petmate Sky Kennel #70048″ × 32″ × 35″—
#700 ExtenderAdds 3″ heightContact Dryfur

Bowls & Airline Mesh Requirements

Food and water bowls attached to the inside of a crate door

Food & water bowls

Two bowls must be attached to the inside of the crate door — one for water and one for food. Rabbits and other small mammals may use an outside water bottle instead.

Fine mesh fitted over the openings of a pet travel crate

Mesh: British Airways, Emirates, Aer Lingus & KLM

  • Cats: mesh on the outside of the crate over all openings
  • Dogs: mesh required if any opening is larger than 1″
  • Rabbits & ferrets: mesh over all openings on every airline

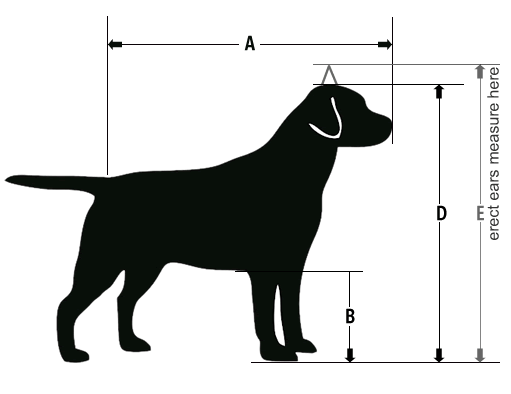

Dog Measuring Guide

Measure your dog standing tall, and measure the body — not the hair.

A
Length: tip of the nose to the base of the tail (rump)
B
Height: floor to the elbow joint
C
Width: widest point of the body (flesh, not hair)
D
Height: floor to the top of the head
E
Ear tips: floor to the tip of the ears for erect-eared breeds

IATA minimum inside dimensions

  • Length = A + ½ B
  • Width = C × 2
  • Height = D or E (whichever is taller) + clearance

Allow at least 10 cm (about 4″) above the head or ear tips. Brachycephalic (snub-nosed) breeds must go one crate size larger. Always double-check your numbers.

Diagram showing how to measure a dog's length and elbow height for a travel crate Diagram showing how to measure a dog's width and standing height for a travel crate

Tall Dogs: Height Extension Kits

If your dog is too tall for the largest standard crate, a height extension kit adds the headroom airlines require.

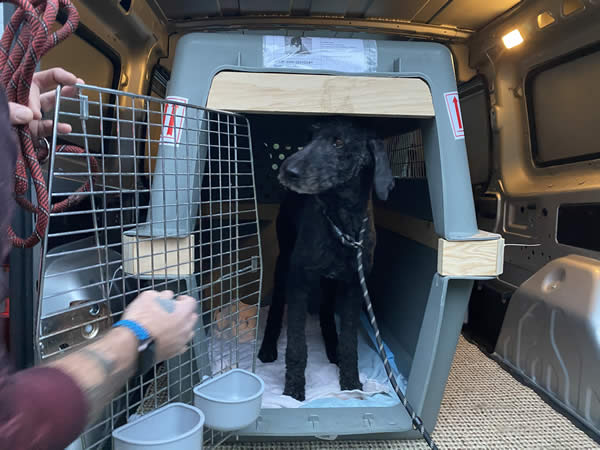

Pet travel crate fitted with a custom 3-inch height extension kit

Custom 3″ height extension kit

PP90 travel crate fitted with a 5-inch height extension kit

PP90 with a 5″ height extension kit

All container requirements come from the IATA Live Animals Regulations (LAR), which are updated regularly. Individual airlines may add their own rules on top of the LAR.

Crate Guidelines FAQ

Can my dog wear a collar or harness in the crate?

No. Pets fly without collars or harnesses on their body. A leash and collar can be attached to the outside of the crate, but security staff may remove them.

Can I sedate my pet for the flight?

No. Sedation of any kind is not permitted. If your pet needs calming, use a natural, non-sedative product such as Adaptil Calming Spray, which we can apply inside the crate.

How much headroom does my pet need?

Your pet must be able to stand fully upright without the head or ear tips touching the roof. We recommend at least 10 cm (about 4″) of clearance, and snub-nosed breeds must go one size larger.

Do airlines require two bowls?

Yes. Two bowls — one for food and one for water — must be attached to the inside of the crate door so staff can refill them without opening the crate.

Can I put food in the crate?

One clear ziplock bag of kibble can be attached to the outside of the crate. On flight day, feed no more than half your pet’s normal meal.

Is the smallest Sky Kennel #100 allowed?

Not for international travel. The #100 is too small for airline cargo on international routes; the #200 is the smallest standard size in our chart for those flights.
